If you’re looking to boost your storage speed in 2026, I recommend exploring high-performance NVMe HBA cards like the PCIe 4.0 x16 to M.2 expansion, HighPoint Rocket series, and Broadcom 9500-16i. These cards support multiple drives, RAID configurations, and high throughput for demanding workloads. They’re compatible with various motherboards and system setups, often featuring cooling solutions. To find the best options, keep reading for detailed insights on each card’s features and performance.
Key Takeaways
- High-performance NVMe HBA cards support PCIe 4.0 for maximum throughput, reaching up to 14,000 MB/s per drive.
- Compatibility with various motherboards and OSes ensures seamless system integration and optimal speed.
- Advanced cooling features like fanless designs and heatsinks prevent thermal throttling during intensive workloads.
- Multiple ports and RAID support enable high-capacity and ultra-fast storage configurations.
- Enterprise-grade options provide reliable, scalable solutions for demanding data transfer speeds in 2026.
| PCIe 4.0 x16 to M.2 NVMe SSD Expansion Card |  | High-Performance Expansion | Interface Type: PCIe 4.0 x16 to M.2 NVMe SSD | Number of Ports: 4 NVMe M.2 SSDs | PCIe Version: PCIe 4.0 | VIEW LATEST PRICE | See Our Full Breakdown |
| HighPoint Rocket 1508 NVMe 8-Port Controller |  | Enterprise Powerhouse | Interface Type: PCIe 4.0/3.0 (supporting PCIe x16 slot) | Number of Ports: 8 NVMe M.2/U.2 ports | PCIe Version: PCIe 3.0 / 4.0 compatible | VIEW LATEST PRICE | See Our Full Breakdown |
| HighPoint 4-Port M.2 PCIe NVMe HBA |  | Versatile HBA | Interface Type: PCIe 3.0/4.0 x8 | Number of Ports: 4 M.2 NVMe SSDs | PCIe Version: PCIe 3.0/4.0 | VIEW LATEST PRICE | See Our Full Breakdown |
| Broadcom 9500-16i 12Gb/s SAS/NVMe HBA |  | Scalable Storage | Interface Type: PCIe 4.0 (supports PCIe 4.0/3.0) | Number of Ports: 4 M.2 NVMe SSDs | PCIe Version: PCIe 4.0 | VIEW LATEST PRICE | See Our Full Breakdown |
| HBA 9500-8i SAS/SATA/NVMe Interface Card |  | Flexible Connectivity | Interface Type: PCIe 4.0 x8 | Number of Ports: 1 port (single SFF-8654) | PCIe Version: PCIe 4.0 | VIEW LATEST PRICE | See Our Full Breakdown |
| Broadcom 9500-16i SAS/NVMe HBA PCIe 4.0 |  | Cost-Effective Choice | Interface Type: PCIe 4.0 (supporting PCIe 4.0/3.0) | Number of Ports: 32 NVMe devices (support via PCIe 4.0) | PCIe Version: PCIe 4.0 | VIEW LATEST PRICE | See Our Full Breakdown |
| Highpoint Rocket 1120 PCIe 3.0 x16 4-Port U.2 Card |  | Quiet Operation | Interface Type: PCIe 3.0 x16 (U.2 NVMe) | Number of Ports: 4 U.2 ports | PCIe Version: PCIe 3.0 | VIEW LATEST PRICE | See Our Full Breakdown |
| HighPoint 4-Port M.2 Rocket NVMe PCIe HBA |  | Compact Design | Interface Type: PCIe 3.0 x8 (M.2 NVMe) | Number of Ports: 4 M.2 NVMe SSDs | PCIe Version: PCIe 3.0 | VIEW LATEST PRICE | See Our Full Breakdown |
| LSI 9400-8i SAS3408 12Gb/s NVMe HBA SAS Adapter Card |  | Enterprise Reliability | Interface Type: PCIe 3.1 x8 (SAS/SATA/NVMe) | Number of Ports: 8 internal SATA/SAS/NVMe drives | PCIe Version: PCIe 3.1 | VIEW LATEST PRICE | See Our Full Breakdown |
| SilverStone PCIe 4.0 to 4 M.2 NVMe SSD Adapter |  | Cooling Focused | Interface Type: PCIe 4.0 x16 (M.2 NVMe) | Number of Ports: 4 M.2 NVMe SSDs | PCIe Version: PCIe 4.0 | VIEW LATEST PRICE | See Our Full Breakdown |
| HighPoint Rocket 1180 PCIe 3.0 x16 NVMe Expansion Card |  | Industry Leader | Interface Type: PCIe 3.0 x16 (U.2 NVMe) | Number of Ports: 4 U.2 NVMe SSDs | PCIe Version: PCIe 3.0 | VIEW LATEST PRICE | See Our Full Breakdown |
More Details on Our Top Picks

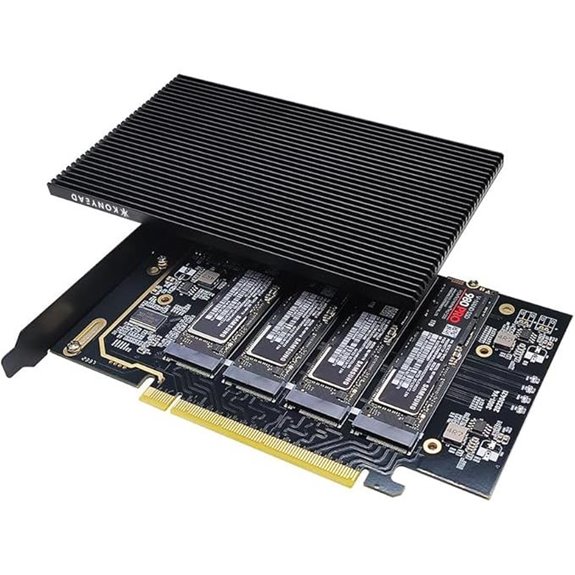

PCIe 4.0 x16 to M.2 NVMe SSD Expansion Card
Looking to maximize your storage performance? The PCIe 4.0 x16 to M.2 NVMe SSD Expansion Card is a game-changer. It supports PCIe split (bifurcation), allowing multiple SSDs to operate simultaneously at high speeds. You’ll need a compatible motherboard with PCIe RAID support and proper BIOS settings. This card can hold four NVMe M.2 2280 drives, delivering up to 256Gbps throughput and RAID0 speeds of 14,000MB/s. It features four DC power modules, a robust heatsink, and a driver-free installation process. Perfect for high-speed data transfer, this expansion card guarantees stability, security, and maximum performance for demanding storage needs.
- Interface Type:PCIe 4.0 x16 to M.2 NVMe SSD
- Number of Ports:4 NVMe M.2 SSDs
- PCIe Version:PCIe 4.0
- Cooling Solution:Aluminum heatsink
- Driver Support:Driver-free
- Form Factor Support:M.2 2280
- Additional Feature:Supports RAID0 for speed
- Additional Feature:Aluminum alloy heatsink
- Additional Feature:Independent 6A power modules
HighPoint Rocket 1508 NVMe 8-Port Controller
The HighPoint Rocket 1508 NVMe 8-Port Controller stands out as an excellent choice for professionals and enthusiasts who need to maximize storage capacity and transfer speeds in high-performance environments. It supports over 100TB on a single controller and is compatible with PCIe 3.0 and 4.0 slots, making it versatile across various motherboards. Equipped with Broadcom’s PCIe 4.0 switch chipset, each port can allocate up to four lanes, delivering full PCIe 4.0 x16 bandwidth across all eight NVMe SSDs. Its simple plug-and-play design, along with native driver support for major OSes, guarantees reliable, ultra-fast storage expansion without complex configurations.
- Interface Type:PCIe 4.0/3.0 (supporting PCIe x16 slot)
- Number of Ports:8 NVMe M.2/U.2 ports
- PCIe Version:PCIe 3.0 / 4.0 compatible
- Cooling Solution:Hyper Cooling Solution
- Driver Support:Native NVMe driver support (Windows, Mac OS)
- Form Factor Support:M.2, U.2
- Additional Feature:Supports PCIe 4.0 & 3.0
- Additional Feature:Native OS driver support
- Additional Feature:Gen 4 Hyper Cooling
HighPoint 4-Port M.2 PCIe NVMe HBA
If you’re seeking a high-performance NVMe HBA that can handle multiple drives simultaneously without complex setup, the HighPoint 4-Port M.2 PCIe NVMe HBA stands out. It supports four M.2 NVMe SSDs on a single PCIe x8 card and is compatible with PCIe 3.0/4.0 slots across Windows, macOS, Linux, VMware, and FreeBSD. No motherboard bifurcation is needed, and it works with any standard PCIe slot. Equipped with the Broadcom PEX 8747 chipset, it offers dedicated x4 lanes per SSD for maximum bandwidth. Its fanless design guarantees silent operation, making it ideal for demanding, noise-sensitive environments.
- Interface Type:PCIe 3.0/4.0 x8
- Number of Ports:4 M.2 NVMe SSDs
- PCIe Version:PCIe 3.0/4.0
- Cooling Solution:Heat sink + thermal pads
- Driver Support:Native OS drivers (Windows, macOS, Linux)
- Form Factor Support:M.2 (any capacity, form factors)
- Additional Feature:Fan-less silent operation
- Additional Feature:Supports multiple OS platforms
- Additional Feature:Fully compliant with PCIe 3.0/4.0
Broadcom 9500-16i 12Gb/s SAS/NVMe HBA
For high-performance server environments demanding maximum scalability and speed, the Broadcom 9500-16i 12Gb/s SAS/NVMe HBA stands out as an ideal choice. It supports PCIe 4.0, ensuring fast data transfer rates and broad OS compatibility, including Windows, macOS, and Linux. With the ability to connect up to 1024 SAS/SATA devices or 32 NVMe drives, it offers exceptional scalability for demanding workloads. Designed for enterprise use, it delivers reliable, high-throughput performance. Its universal Bay Management (UBM) readiness simplifies device management and integration, making it perfect for high-end servers seeking maximum device support and speed.
- Interface Type:PCIe 4.0 (supports PCIe 4.0/3.0)
- Number of Ports:4 M.2 NVMe SSDs
- PCIe Version:PCIe 4.0
- Cooling Solution:Passive heatsink
- Driver Support:Compatible with major OS, native drivers
- Form Factor Support:M.2 (supports 2230-2280)
- Additional Feature:Supports 1024 SAS/SATA devices
- Additional Feature:PCIe 4.0 interface
- Additional Feature:UBM ready for management

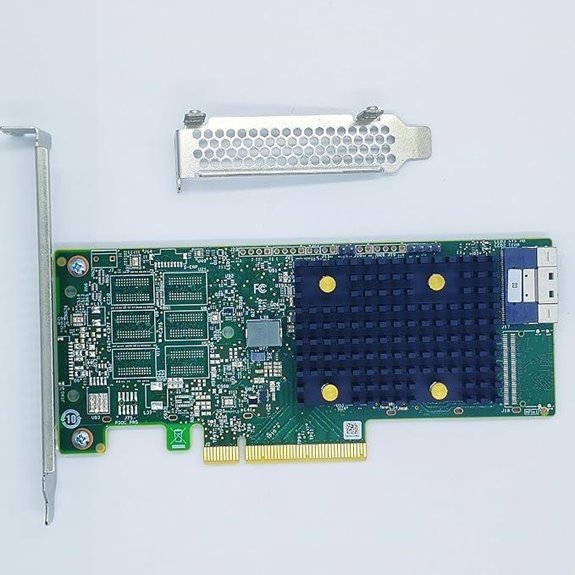

HBA 9500-8i SAS/SATA/NVMe Interface Card
Designed for high-performance storage servers, the HBA 9500-8i SAS/SATA/NVMe Interface Card delivers versatile connectivity with a single PCIe Gen 4.0 x8 host interface. It features the Broadcom SAS3808 tri-mode controller, supporting NVMe, SAS, and SATA protocols for flexible data transfer options. With a 12Gb/s SAS, 6Gb/s SATA, and PCIe Gen 4.0 (NVMe), it guarantees fast, dependable performance. The card includes one x8 SFF-8654 port, making it ideal for expanding storage capacity efficiently. Its compatibility with multiple protocols and high-speed transfer capabilities make it a reliable choice for demanding storage environments.
- Interface Type:PCIe 4.0 x8
- Number of Ports:1 port (single SFF-8654)
- PCIe Version:PCIe 4.0
- Cooling Solution:No specific cooling info
- Driver Support:Supports NVMe, SATA, SAS; OS support implied
- Form Factor Support:SFF-8654 (U.2)
- Additional Feature:Supports NVMe, SAS, SATA
- Additional Feature:PCIe Gen 4.0 x8 interface
- Additional Feature:Includes high and low brackets

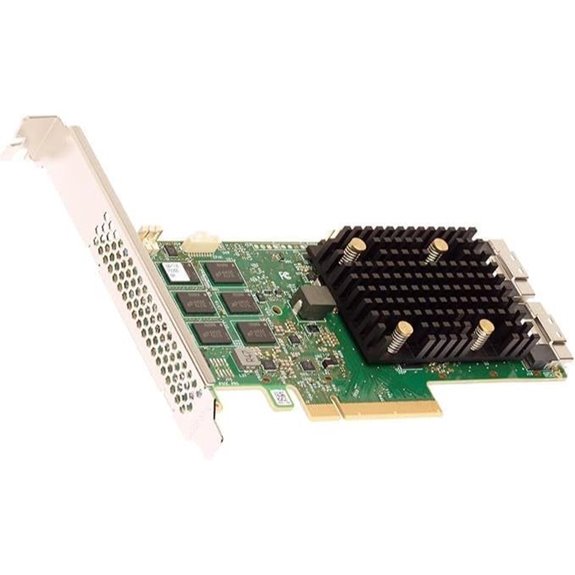

Broadcom 9500-16i SAS/NVMe HBA PCIe 4.0
The Broadcom 9500-16i SAS/NVMe HBA PCIe 4.0 stands out as an excellent choice for high-performance servers that demand extensive storage connectivity and rapid data transfer. It’s a 12Gb/s Tri-Mode SAS/NVMe HBA compatible with Windows, macOS, and Linux, supporting PCIe 4.0 for maximum bandwidth. With the ability to connect up to 1024 SAS/SATA devices or 32 NVMe drives, it handles large-scale storage efficiently. Its high-speed transfer capabilities make it ideal for demanding applications, while Universal Bay Management (UBM) readiness guarantees flexible storage management. This card is perfect for critical environments where speed and capacity are non-negotiable.
- Interface Type:PCIe 4.0 (supporting PCIe 4.0/3.0)
- Number of Ports:32 NVMe devices (support via PCIe 4.0)
- PCIe Version:PCIe 4.0
- Cooling Solution:Full-length heat sink + thermal pads
- Driver Support:Native drivers for major OS
- Form Factor Support:Support for multiple NVMe device types
- Additional Feature:Supports 32 NVMe drives
- Additional Feature:Max 1024 SAS/SATA devices
- Additional Feature:PCIe 4.0 optimized
Highpoint Rocket 1120 PCIe 3.0 x16 4-Port U.2 Card
If you’re aiming to maximize storage performance in high-demand environments, the Highpoint Rocket 1120 PCIe 3.0 x16 4-Port U.2 Card stands out with its dedicated bandwidth for each SSD. It supports up to four U.2 NVMe drives and uses a native NVMe driver for peak speed and compatibility. Thanks to the PEX8747 PCIe switch controller, it provides a dedicated PCIe 3.0 x4 lane per SSD, ensuring high throughput. Its silent cooling keeps temperatures in check without noise, making it reliable during intensive workloads. Plus, installation is straightforward, with no bifurcation needed, and it works with standard U.2 NVMe SSDs.
- Interface Type:PCIe 3.0 x16 (U.2 NVMe)
- Number of Ports:4 U.2 ports
- PCIe Version:PCIe 3.0
- Cooling Solution:Silent cooling, no fan
- Driver Support:Native drivers, no software needed
- Form Factor Support:U.2 (NVMe)
- Additional Feature:Supports off-the-shelf U.2 SSDs
- Additional Feature:Dedicated PCIe x4 per SSD
- Additional Feature:No bifurcation needed
HighPoint 4-Port M.2 Rocket NVMe PCIe HBA
For professionals seeking high-performance storage solutions, the HighPoint 4-Port M.2 Rocket NVMe PCIe HBA stands out with its ability to support four M.2 NVMe SSDs on a single PCIe x8 card, delivering impressive transfer speeds up to 14,000 MB/s in RAID 0. Its compatibility spans Windows, macOS, Linux, and VMware, offering flexible configurations for individual or pooled storage. Equipped with a Broadcom PEX 8747 PCIe switch controller, it guarantees dedicated x4 lane bandwidth per slot. The fan-less cooling system keeps temperatures at their best silently, making it ideal for demanding environments where speed, reliability, and quiet operation matter most.
- Interface Type:PCIe 3.0 x8 (M.2 NVMe)
- Number of Ports:4 M.2 NVMe SSDs
- PCIe Version:PCIe 3.0
- Cooling Solution:Fan-less heatsink
- Driver Support:Native NVMe drivers, OS compatible
- Form Factor Support:M.2 (supports multiple sizes)
- Additional Feature:Supports flexible RAID use
- Additional Feature:Fully PCIe 3.0 compliant
- Additional Feature:Silent, fan-less cooling
LSI 9400-8i SAS3408 12Gb/s NVMe HBA SAS Adapter Card
The LSI 9400-8i SAS3408 12Gb/s NVMe HBA SAS Adapter Card stands out as an excellent choice for those seeking high-performance storage solutions, thanks to its robust PCIe 8x 3.1 interface and dual miniSAS SFF-8643 ports. It supports up to eight SATA or SAS drives internally, making it ideal for expanding storage capacity efficiently. With a maximum data transfer rate of 12Gbps, it delivers fast and reliable performance. The card includes both full and low profile brackets for flexible installation, and its latest IT mode firmware ensures compatibility and ideal operation across various systems.
- Interface Type:PCIe 3.1 x8 (SAS/SATA/NVMe)
- Number of Ports:8 internal SATA/SAS/NVMe drives
- PCIe Version:PCIe 3.1
- Cooling Solution:Passive cooling with heatsink
- Driver Support:Native OS drivers, no complex software
- Form Factor Support:Supports 2280, 2260, 2242, 22110
- Additional Feature:Supports 8 drives
- Additional Feature:Includes full/low profile brackets
- Additional Feature:Latest IT mode firmware

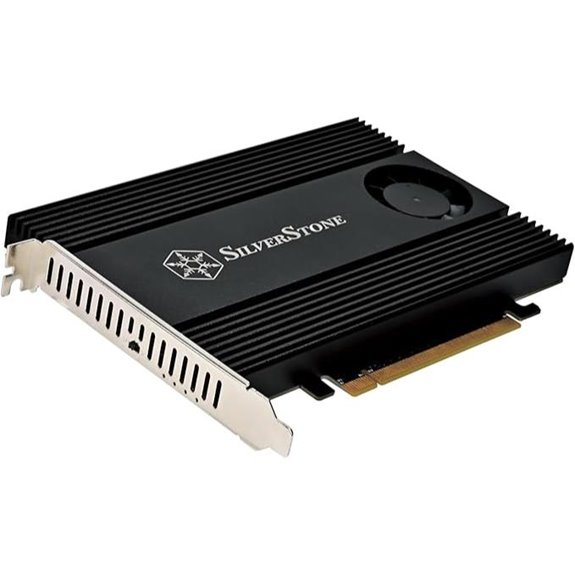

SilverStone PCIe 4.0 to 4 M.2 NVMe SSD Adapter
Looking to maximize storage density and performance in a single system? The SilverStone PCIe 4.0 to 4 M.2 NVMe SSD Adapter is a great choice. It supports up to four M.2 NVMe drives in various sizes, connecting via a PCIe x16 interface. Just verify your motherboard or HBA supports PCIe bifurcation to split the slot correctly. It features USAP and TRIM support for better SSD performance and longevity, plus a built-in 40mm dual ball bearing fan for cooling. With this adapter, you can efficiently expand your storage capacity while maintaining high speeds and reliability. It’s a solid solution for demanding data centers or high-performance workstations.
- Interface Type:PCIe 4.0 x16 (M.2 NVMe)
- Number of Ports:4 M.2 NVMe SSDs
- PCIe Version:PCIe 4.0
- Cooling Solution:Includes fan with on/off switch
- Driver Support:Native NVMe support
- Form Factor Support:M.2 (supports 2230-2280)
- Additional Feature:Supports PCIe bifurcation
- Additional Feature:Data center-grade reliability
- Additional Feature:Includes cooling fan
HighPoint Rocket 1180 PCIe 3.0 x16 NVMe Expansion Card
If you’re building a high-performance storage system capable of handling demanding workloads, the HighPoint Rocket 1180 PCIe 3.0 x16 NVMe Expansion Card stands out as an excellent choice. It features eight U.2/U.3/M.2 NVMe ports and supports over 100TB on a single controller, making it ideal for large-scale data needs. Fully compatible with PCIe 3.0 slots, it offers native NVMe support for easy setup. The card’s dedicated PCIe x16 bandwidth ensures high-speed transfers, while its low-noise cooling keeps temperatures ideal without added noise. An intelligent PCIe switch controller manages data flow efficiently, delivering reliable, high-performance connectivity across all attached drives.
- Interface Type:PCIe 3.0 x16 (U.2 NVMe)
- Number of Ports:4 U.2 NVMe SSDs
- PCIe Version:PCIe 3.0
- Cooling Solution:Silent cooling solution
- Driver Support:Native drivers, broad OS support
- Form Factor Support:U.2 (NVMe)
- Additional Feature:Supports over 100TB capacity
- Additional Feature:Native NVMe driver support
- Additional Feature:Low-noise cooling design
Factors to Consider When Choosing an NVME HBA Card
When choosing an NVMe HBA card, I consider how well it fits my system’s compatibility and interface requirements. It’s also important to check the PCIe slot needed, storage capacity limits, and how the card manages heat. These factors ensure I get the best performance without any compatibility issues.
Compatibility With Systems
Choosing the right NVMe HBA card requires guaranteeing it seamlessly integrates with your system’s hardware and software. First, check that the card supports your motherboard’s interface standards, like PCIe 3.0 or 4.0, for compatibility. Next, verify it works with your operating system, whether Windows, Linux, or macOS, to ensure proper driver support. It’s also important to see if your motherboard has the necessary features, such as bifurcation support, to utilize multiple drives effectively. Make sure your motherboard has available PCIe slots with the right size and bandwidth to handle the card’s performance demands. Finally, review the manufacturer specifications to confirm the HBA can support your intended number of drives and connection types, avoiding any compatibility issues down the line.
Supported Interface Types
Selecting an NVMe HBA card involves understanding the different interface types it supports, as these directly affect performance and compatibility. PCIe 3.0 and PCIe 4.0 are the main options, with PCIe 4.0 providing double the data transfer speed of PCIe 3.0. The interface type determines the maximum bandwidth available to your NVMe drives, impacting overall speed. Some cards feature multiple ports supporting various protocols, like NVMe, SAS, or SATA, depending on the interface. Compatibility with your motherboard slots and support for bifurcation are vital for maximizing performance. Additionally, the interface influences system latency and power consumption, which are important factors for high-speed storage setups. Choosing the right interface type ensures you get the best balance of speed, compatibility, and efficiency.
PCIe Slot Requirements
To maximize the performance of your NVMe HBA card, it’s essential to guarantee your motherboard’s PCIe slot can support the necessary lane configuration, such as x8 or x16. The physical size of the slot impacts compatibility and potential speed, with x8 or x16 slots offering higher bandwidth for demanding workloads. Ensure your motherboard supports PCIe bifurcation, which allows splitting a single slot into multiple lanes, enabling multiple NVMe drives to operate efficiently. Upgrading to PCIe 4.0 slots provides faster transfer speeds compared to PCIe 3.0, but only if your HBA card is compatible. Verifying these requirements ensures you leverage the full potential of your NVMe HBA, preventing bottlenecks and maximizing storage performance.
Storage Capacity Limits
Understanding the storage capacity limits of an NVMe HBA card is essential because these limits directly determine how much data you can store and manage. The maximum capacity depends on the number of supported SSDs and their individual sizes. Hardware factors like available ports and drive capacity per slot play a key role. Compatibility with your motherboard and BIOS can also influence whether you can fully utilize the card’s potential. Some enterprise-grade HBA cards support multiple drives with capacities over several terabytes, making them ideal for large storage needs. To guarantee full capacity utilization, keeping the HBA firmware and drivers up to date is necessary. Failing to take into account these capacity factors might result in underused hardware or storage bottlenecks.
Cooling and Thermal Management
Effective cooling is essential when choosing an NVMe HBA card because high-speed data transfers generate significant heat that can impair performance and hardware longevity. Without proper thermal management, thermal throttling can slow down data speeds, and prolonged overheating may shorten the lifespan of SSDs and cause data loss. To prevent this, look for cards with built-in heatsinks or compatibility with cooling accessories like fans. Good airflow within the case and strategic placement of cooling components are also vital for dissipating heat efficiently. Prioritizing thermal features ensures your HBA operates at peak speeds without risking hardware damage. Selecting a card with effective cooling solutions helps maintain system stability and maximizes your storage performance over time.
RAID and Bifurcation Support
When selecting an NVMe HBA card, considering RAID and bifurcation support can substantially impact your storage setup’s performance and flexibility. RAID support allows for data redundancy, performance boosts, or both, depending on your configuration. Bifurcation enables splitting a single PCIe slot into multiple lanes, allowing multiple NVMe drives to operate at full bandwidth simultaneously. Not all HBA cards support these features, so verifying their presence guarantees compatibility with your needs. Additionally, proper motherboard support for bifurcation is vital; without it, multiple drives may not function correctly or reach maximum performance. Enabling RAID or bifurcation often requires BIOS configuration to allocate lanes properly and recognize all connected drives, making compatibility and setup clarity essential in your decision-making process.
Power Supply Needs
To guarantee your NVMe HBA card performs reliably, you need a power supply that can provide sufficient wattage and stable amperage for all connected drives. Make certain your power supply can handle the total power draw of the HBA and multiple NVMe drives, especially under full load. Check if the card requires additional power connectors or PCIe power adapters, as high-performance cards often do. It’s vital that your power supply delivers clean, stable power to prevent data corruption or drive failure during intensive workloads. Also, consider the efficiency rating to ensure it can support high-power components without overheating or instability. Proper cable management and airflow are essential to prevent overheating, particularly when multiple drives operate simultaneously at maximum capacity.
Frequently Asked Questions
What Are the Key Differences Between PCIE 3.0 and PCIE 4.0 NVME HBA Cards?
The main difference between PCIe 3.0 and PCIe 4.0 NVMe HBA cards lies in speed. PCIe 4.0 offers double the bandwidth of PCIe 3.0, reaching up to 16 GT/s compared to 8 GT/s, which translates to faster data transfer rates. This means PCIe 4.0 cards can handle higher throughput, making them ideal for demanding workloads and future-proofing your storage setup.
How Does Heat Dissipation Impact NVME HBA Card Performance and Lifespan?
Back in the day, heat was just a nuisance, but now it’s a performance killer. Heat dissipation directly impacts NVMe HBA card performance and lifespan. When these cards overheat, they throttle speeds to cool down, which slows everything down. Plus, sustained high temps can degrade components faster, shortening the card’s lifespan. Proper cooling solutions ensure ideal performance and longevity, making heat management a must for any high-speed storage setup.
Can Multiple NVME HBA Cards Be Installed in a Single System Simultaneously?
Yes, you can install multiple NVMe HBA cards in a single system, but it depends on your motherboard’s PCIe slots and power capacity. I’ve done this to maximize storage, ensuring each card has enough bandwidth. Just make sure your system’s cooling is adequate, as multiple cards generate more heat. Check compatibility and slot availability beforehand, and consider using a high-quality power supply for stability.
What Are the Compatibility Considerations for Different Motherboard Chipsets?
When choosing NVMe HBA cards, I always check the motherboard’s chipset compatibility first. Not all chipsets support multiple PCIe lanes needed for high-speed drives, and some may lack native NVMe support. I look for motherboards with PCIe 4.0 or higher, ensuring they offer enough lanes for multiple cards. It’s also essential to confirm BIOS support and ensure the slots are configured properly to avoid bottlenecks.
How Do Hardware RAID Configurations Work With NVME HBA Cards?
Hardware RAID with NVMe HBA cards creates a balance between speed and data protection. I configure these cards to combine multiple drives into a single logical volume, enhancing performance and redundancy. Unlike software RAID, hardware RAID offloads processing, maintaining high speeds. I guarantee compatibility with my motherboard and firmware, and I select the right RAID level for my needs, whether for speed, redundancy, or a mix of both.
Conclusion
Choosing the right NVMe HBA card is like picking the perfect engine for your high-speed vehicle—each one powers your storage journey differently. With the options I’ve shared, you’re armed to accelerate your data transfer speeds and conquer storage demands. Think of it as upgrading from a bicycle to a race car; your system will zoom through tasks with lightning agility. So, gear up and select the card that’ll propel your setup into the fast lane!
