If you’re looking to upgrade your setup with the best PCIe bifurcation risers for 2026, I recommend checking out options like the JMT PCIe 4.0 x16 to x8 bifurcation adapters, Syba’s M.2 NVMe controllers, and RIITOP’s dual NVMe risers. These offer high bandwidth, reliable build quality, and easy installation. Keep in mind compatibility with your motherboard and PCIe version. If you keep exploring, you’ll discover more top choices tailored to your needs.
Key Takeaways
- Top PCIe bifurcation risers support PCIe 4.0 x16 to multiple x8 or x4 splits for high-performance expansion.
- Ensure compatibility with your motherboard’s PCIe slot type, version, and bifurcation support in BIOS.
- Look for models with full shielding, high-quality connectors, and thermal management features for long-term stability.
- Consider cable length, form factor, and internal layout to fit your case and optimize airflow.
- Prioritize adapters with robust power delivery, easy installation, and clear compatibility notes for seamless upgrades.
| JMT PCIe 4.0 X16 to X8 Bifurcation Adapter |  | Flexible High-Speed | Bandwidth: 256 Gbps | PCIe Version Compatibility: Supports PCIe 4.0, backward compatible | Power Cable Length: 50cm | VIEW LATEST PRICE | See Our Full Breakdown |
| JMT PCIe 4.0 x16 1-to-2 Split Card |  | Enhanced Bifurcation Support | Bandwidth: 256 Gbps | PCIe Version Compatibility: Supports PCIe 4.0, compatible with PCIe 3.0/2.0 | Power Cable Length: Not specified (standard length) | VIEW LATEST PRICE | See Our Full Breakdown |
| JMT PCIe 4.0 x16 Bifurcation Riser Card |  | Reliable Performance | Bandwidth: 256 Gbps | PCIe Version Compatibility: Supports PCIe 4.0, backward compatible | Power Cable Length: 50cm | VIEW LATEST PRICE | See Our Full Breakdown |
| JMT PCIe 4.0 X16 to X8 Bifurcation Adapter | | Versatile Expansion | Bandwidth: 256 Gbps | PCIe Version Compatibility: Supports PCIe 4.0, backward compatible | Power Cable Length: 100cm | VIEW LATEST PRICE | See Our Full Breakdown |
| Syba M.2 NVMe PCIe 3.0 x16 Riser Controller |  | Storage Optimization | Bandwidth: 256 Gbps | PCIe Version Compatibility: PCIe 3.0 x16, supports PCIe 3.0/2.0 | Power Cable Length: Not specified | VIEW LATEST PRICE | See Our Full Breakdown |
| JMT PCIe 4.0 x16 Bifurcation Riser Card |  | Advanced Connectivity | Bandwidth: 256 Gbps | PCIe Version Compatibility: Supports PCIe 4.0, backward compatible | Power Cable Length: Not specified | VIEW LATEST PRICE | See Our Full Breakdown |
| JMT PCIe 3.0 x16 1 to 4 Split Card |  | Multi-Device Support | Bandwidth: 256 Gbps | PCIe Version Compatibility: PCIe 3.0 x16, supports PCIe 3.0/2.0 | Power Cable Length: Not specified | VIEW LATEST PRICE | See Our Full Breakdown |
| RIITOP Quad NVMe PCIe Adapter with Heatsink |  | Cooling Efficiency | Bandwidth: 256 Gbps | PCIe Version Compatibility: Supports PCIe 4.0/3.0, depends on motherboard | Power Cable Length: Not specified | VIEW LATEST PRICE | See Our Full Breakdown |
| Yunseity PCIe 4.0 X16 Riser Card with Bifurcation |  | Easy Installation | Bandwidth: 256 Gbps | PCIe Version Compatibility: Supports PCIe 4.0/3.0, backward compatible | Power Cable Length: 65cm | VIEW LATEST PRICE | See Our Full Breakdown |
| RIITOP PCIe NVMe Adapter for 4 SSDs |  | Heavy-Duty Storage | Bandwidth: 256 Gbps | PCIe Version Compatibility: Supports PCIe 4.0/3.0, depends on motherboard | Power Cable Length: Not specified | VIEW LATEST PRICE | See Our Full Breakdown |
| Sintech PCIe 4.0 x16 to 2 Ports Expansion Card |  | Space-Saving Design | Bandwidth: Up to 256 Gbps | PCIe Version Compatibility: Supports PCIe 4.0/3.0 | Power Cable Length: Not specified | VIEW LATEST PRICE | See Our Full Breakdown |
| JMT PCIe 4.0 x16 Bifurcation Riser Card |  | Professional Storage | Bandwidth: 256 Gbps | PCIe Version Compatibility: Supports PCIe 4.0/3.0 | Power Cable Length: 65cm | VIEW LATEST PRICE | See Our Full Breakdown |
| GLOTRENDS PA21 Dual M.2 NVMe PCIe 4.0 Adapter |  | High Compatibility | Bandwidth: 256 Gbps | PCIe Version Compatibility: Supports PCIe 4.0/3.0 | Power Cable Length: Not specified | VIEW LATEST PRICE | See Our Full Breakdown |
| RIITOP Dual NVMe PCIe Adapter for SSDs |  | Robust Power Delivery | Bandwidth: 256 Gbps | PCIe Version Compatibility: Supports PCIe 4.0/3.0 | Power Cable Length: Not specified | VIEW LATEST PRICE | See Our Full Breakdown |
| Yunseity PCIe 4.0 X16 Riser Card with Bifurcation | | Seamless Bifurcation | Bandwidth: 256 Gbps | PCIe Version Compatibility: Supports PCIe 4.0, backward compatible | Power Cable Length: 65cm | VIEW LATEST PRICE | See Our Full Breakdown |
More Details on Our Top Picks

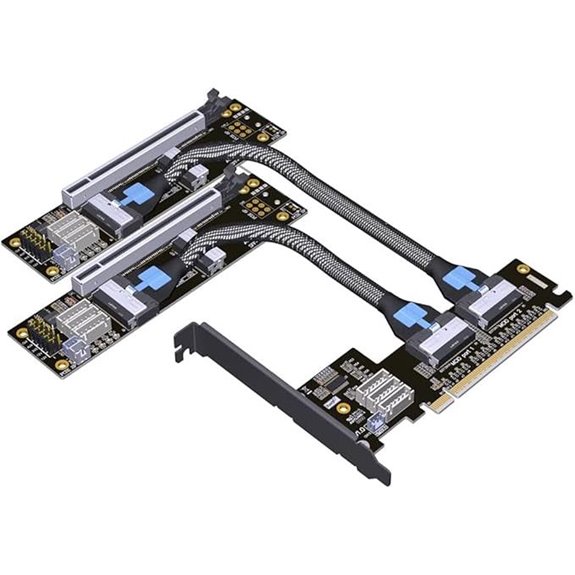

JMT PCIe 4.0 X16 to X8 Bifurcation Adapter
If you’re looking to expand your PCIe capabilities with high-speed, reliable bifurcation, the JMT PCIe 4.0 X16 to X8 Bifurcation Adapter is an excellent choice. It supports PCIe 4.0’s impressive 256 Gbps bandwidth and offers flexible bifurcation options, allowing you to split one x16 slot into two x8 slots or other configurations. Its gold-plated contacts guarantee excellent conductivity and durability, while the included 50cm power cable provides stable operation. Compatible with PCIe 3.0 and 2.0, this adapter is perfect for expanding GPU setups or high-speed data transfers, making it versatile for demanding applications.
- Bandwidth:256 Gbps
- PCIe Version Compatibility:Supports PCIe 4.0, backward compatible
- Power Cable Length:50cm
- Bifurcation Support:Supports 1-to-2, 2-to-2 bifurcation
- Material/Build Quality:Gold-plated contacts, full shielding FFC cable
- Compatibility/Motherboard Support:Requires motherboard support for bifurcation
- Additional Feature:Supports versatile bifurcation configs
- Additional Feature:Includes 50cm power cable
- Additional Feature:Gold-plated contact design

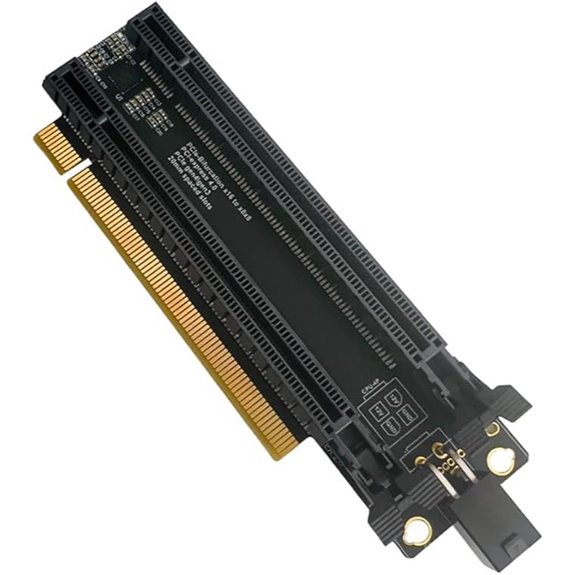

JMT PCIe 4.0 x16 1-to-2 Split Card
The JMT PCIe 4.0 x16 1-to-2 Split Card stands out as an ideal choice for users who need to maximize their PCIe bandwidth while maintaining flexibility in their expansion setup. It supports PCIe 4.0 x16 full bandwidth and is compatible with PCIe Gen3 and Gen4, though full Gen4 performance depends on motherboard BIOS settings. Its physical design features 20mm spaced slots, a durable gold finger sinking process, and a secure Gen4 connector with dust plug and snap mechanism. With an auxiliary power port, LED indicator, and support for extension cables, it offers reliable performance for high-demand PCIe devices, making it a versatile upgrade option.
- Bandwidth:256 Gbps
- PCIe Version Compatibility:Supports PCIe 4.0, compatible with PCIe 3.0/2.0
- Power Cable Length:Not specified (standard length)
- Bifurcation Support:Supports bifurcation to x8x8
- Material/Build Quality:Gold-plated fingers, shielded FFC cable
- Compatibility/Motherboard Support:Requires BIOS support for bifurcation
- Additional Feature:Supports PCIe Gen3/4 compatibility
- Additional Feature:Features power-on LED indicator
- Additional Feature:Uses new generation Gen4 connector

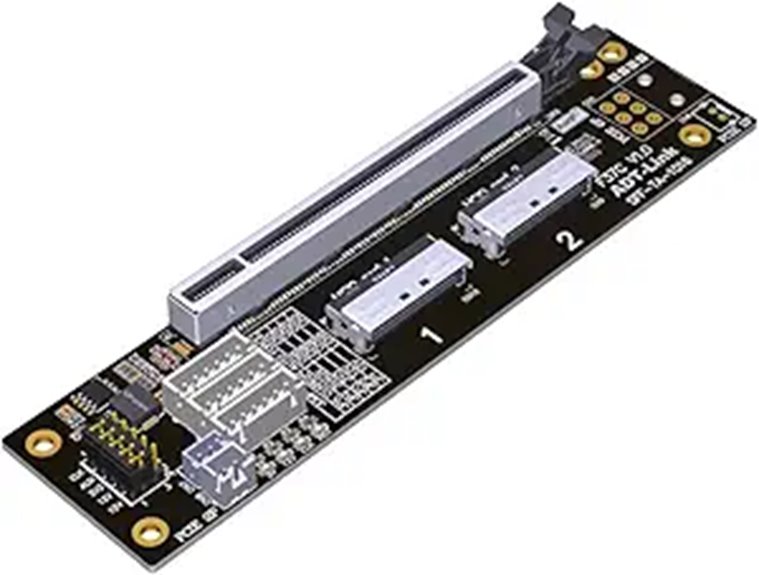

JMT PCIe 4.0 x16 Bifurcation Riser Card
Designed for high-performance enthusiasts and professionals, the JMT PCIe 4.0 x16 Bifurcation Riser Card delivers exceptional bandwidth with support for 256 Gbps data transfer rates. It features a PCIe 4.0 x16 interface that’s backward compatible with PCIe 3.0 and 2.0 standards, guaranteeing broad compatibility. The gold-plated 10µ finger connectors improve electrical conductivity and reduce oxidation, minimizing errors. Its flexible bifurcation options, including one-to-one and one-to-two splits, suit various motherboard configurations. The 50cm fully shielded FFC flat cable is thin, durable, and guarantees efficient signal transmission. This riser is perfect for expanding PCIe slots where high-speed data transfer is essential.
- Bandwidth:256 Gbps
- PCIe Version Compatibility:Supports PCIe 4.0, backward compatible
- Power Cable Length:50cm
- Bifurcation Support:Supports flexible bifurcation, including 1-to-2, 1-to-1
- Material/Build Quality:Gold-plated contacts, full coverage shielding
- Compatibility/Motherboard Support:Needs motherboard with bifurcation support
- Additional Feature:Supports flexible lane splits
- Additional Feature:Backward compatible PCIe 3.0/2.0
- Additional Feature:256 Gbps bandwidth support
JMT PCIe 4.0 X16 to X8 Bifurcation Adapter
The JMT PCIe 4.0 X16 to X8 Bifurcation Adapter stands out for its ability to support PCIe 4.0×16 bandwidth, providing an impressive 256 Gbps transfer rate, making it ideal for users seeking top-tier performance. It’s backward compatible with PCIe 3.0 and 2.0, offering flexible use across different systems. The adapter features gold-plated fingers for better conductivity and a full-shielded, ultra-thin FFC cable for reliable signal transmission. Designed for versatile PCIe splitting, it supports configurations like one-to-two or two-to-two, but requires motherboard support for bifurcation. It’s perfect for expanding high-performance setups with multiple graphics cards or devices.
- Bandwidth:256 Gbps
- PCIe Version Compatibility:Supports PCIe 4.0, backward compatible
- Power Cable Length:100cm
- Bifurcation Support:Supports 1-to-2, 2-to-2 bifurcation
- Material/Build Quality:Gold-plated fingers, shielded flat cable
- Compatibility/Motherboard Support:Needs motherboard support for bifurcation
- Additional Feature:100cm power cable included
- Additional Feature:Supports one-to-two split
- Additional Feature:Designed for high-speed transfer
Syba M.2 NVMe PCIe 3.0 x16 Riser Controller
If you’re looking to maximize your storage capacity without relying on motherboard bifurcation support, the Syba M.2 NVMe PCIe 3.0 x16 Riser Controller is an excellent option. It connects four NVMe SSDs via a PCIe 3.0 x16 slot, using an AS Medias ASM2824 switch that offers PCIe 3.0 x8 upstream bandwidth. This setup allows high-speed data transfer and supports NVMe RAID configurations, boosting performance and redundancy. It’s compatible with systems that lack native bifurcation support, including closed-end systems. Overall, this controller is perfect for expanding storage with minimal hassle, delivering fast, reliable performance for demanding storage needs.
- Bandwidth:256 Gbps
- PCIe Version Compatibility:PCIe 3.0 x16, supports PCIe 3.0/2.0
- Power Cable Length:Not specified
- Bifurcation Support:Supports bifurcation, requires BIOS support
- Material/Build Quality:Gold-plated connectors, PCB with high quality
- Compatibility/Motherboard Support:Requires motherboard with bifurcation support
- Additional Feature:Supports NVMe RAID configs
- Additional Feature:Uses ASM2824 switch chip
- Additional Feature:Suitable for high-performance SSDs

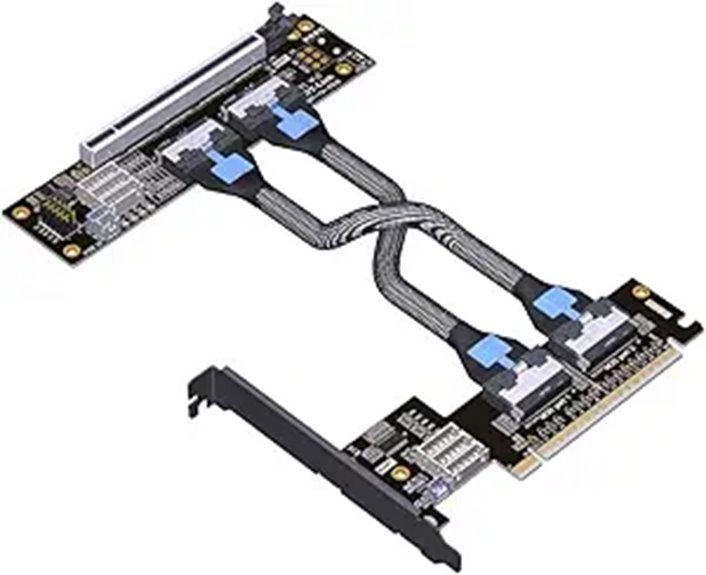

JMT PCIe 4.0 x16 Bifurcation Riser Card
For users seeking reliable high-speed expansion, the JMT PCIe 4.0 x16 Bifurcation Riser Card stands out with its support for PCIe 4.0 standards and stable signal transmission. It offers a high bandwidth of 256 Gbps, ensuring fast and dependable performance. Built with an advanced four-layer PCB and gold-plated connectors, it guarantees excellent electrical conductivity and durability. Compatibility with PCIe bifurcation-enabled motherboards makes it versatile for splitting x16 slots to accommodate multiple GPUs or devices. Designed for stability and ease of installation, this riser card is ideal for demanding setups where reliable, high-speed connections matter most.
- Bandwidth:256 Gbps
- PCIe Version Compatibility:Supports PCIe 4.0, backward compatible
- Power Cable Length:Not specified
- Bifurcation Support:Supports bifurcation, requires motherboard support
- Material/Build Quality:Gold-plated contacts, four-layer PCB
- Compatibility/Motherboard Support:Needs motherboard BIOS support
- Additional Feature:Four-layer PCB design
- Additional Feature:UL certified PCB board
- Additional Feature:Optional BK7 bracket support
JMT PCIe 3.0 x16 1 to 4 Split Card
Designed to maximize PCIe slot utilization, the JMT PCIe 3.0 x16 1 to 4 Split Card is ideal for users who need to expand their system with multiple high-performance devices. It allows you to install four PCIe cards—such as graphics cards, network cards, SSDs, or capture devices—supporting high X4 performance across all slots. Built with high-quality materials like a gold-plated slot connector and a durable circuit board, it guarantees reliable performance and longevity. Just remember, you’ll need to configure your motherboard BIOS to enable PCIe slots at GEN3 x4 speeds for ideal operation.
- Bandwidth:256 Gbps
- PCIe Version Compatibility:PCIe 3.0 x16, supports PCIe 3.0/2.0
- Power Cable Length:Not specified
- Bifurcation Support:Supports 1-to-4 split (x16 to 4×4)
- Material/Build Quality:Gold-plated slot connectors, high TG PCB
- Compatibility/Motherboard Support:Requires BIOS setup for bifurcation
- Additional Feature:Supports multiple PCIe cards
- Additional Feature:Includes solid capacitors
- Additional Feature:20.2mm spaced slots

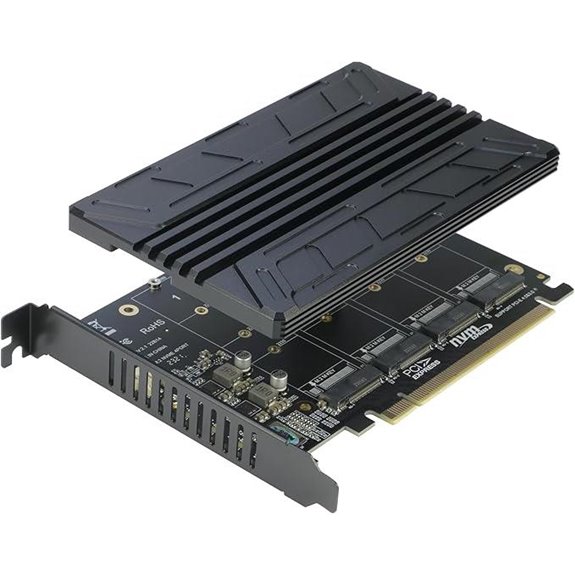

RIITOP Quad NVMe PCIe Adapter with Heatsink
The RIITOP Quad NVMe PCIe Adapter with Heatsink stands out as an ideal solution for high-performance setups that need to connect multiple NVMe SSDs without sacrificing thermal management. Its built-in 0.32-inch heatsink effectively prevents thermal throttling, ensuring sustained speeds. The adapter supports four M.2 PCIe NVMe SSDs in various sizes and connects via PCIe 4.0 or 3.0 x16 slot, provided your motherboard supports bifurcation. LED indicators display each SSD’s status, making troubleshooting easier. It’s perfect for server or high-end desktop builds, but compatibility depends on motherboard BIOS settings and bifurcation support.
- Bandwidth:256 Gbps
- PCIe Version Compatibility:Supports PCIe 4.0/3.0, depends on motherboard
- Power Cable Length:Not specified
- Bifurcation Support:Supports bifurcation with motherboards
- Material/Build Quality:Aluminum heatsink, high-quality PCB
- Compatibility/Motherboard Support:Supports most server/workstation boards with bifurcation
- Additional Feature:Equipped with dedicated heatsink
- Additional Feature:Supports multiple NVMe sizes
- Additional Feature:LED indicators for each SSD
Yunseity PCIe 4.0 X16 Riser Card with Bifurcation
If you’re looking to expand your PC’s capabilities with high-speed, flexible connectivity, the Yunseity PCIe 4.0 X16 Riser Card with Bifurcation stands out as an excellent choice. It’s a plug-and-play bifurcation adapter that connects from SFF-8611 8i to PCIe x16, supporting PCIe 4.0 speeds up to 256Gbps. Its fully shielded 65cm FFC flat cable allows splitting into one or two connections, offering versatile applications. Designed for simplicity, it requires no drivers, making installation quick and easy. Compatible with PCIe 4.0, 3.0, and 2.0, it’s perfect for high-performance upgrades and professional setups.
- Bandwidth:256 Gbps
- PCIe Version Compatibility:Supports PCIe 4.0/3.0, backward compatible
- Power Cable Length:65cm
- Bifurcation Support:Supports bifurcation, requires motherboard support
- Material/Build Quality:Shielded cable, robust construction
- Compatibility/Motherboard Support:Needs motherboard support for bifurcation
- Additional Feature:Fully shielded FFC cable
- Additional Feature:Plug-and-play design
- Additional Feature:65cm cable length
RIITOP PCIe NVMe Adapter for 4 SSDs
For users seeking to maximize storage capacity and data transfer speeds, the RIITOP PCIe NVMe Adapter for 4 SSDs offers a compelling solution. It allows you to add four NVMe SSDs simultaneously through a PCIe 4.0 or 3.0 x16 slot, supporting full-speed transmission up to 4x 32Gbps. The adapter is compatible with various M.2 sizes and most server motherboards supporting PCIe x16 bifurcation, such as X299 and X399. It’s ideal for space-constrained setups, featuring a low-profile bracket for 2U cases. Remember, BIOS configuration is essential, and it doesn’t support hardware RAID, only software solutions.
- Bandwidth:256 Gbps
- PCIe Version Compatibility:Supports PCIe 4.0/3.0, depends on motherboard
- Power Cable Length:Not specified
- Bifurcation Support:Supports bifurcation (x16 to 4×4)
- Material/Build Quality:Metal casing, LED indicators
- Compatibility/Motherboard Support:Requires motherboard BIOS support
- Additional Feature:Low-profile bracket included
- Additional Feature:Supports multiple sizes
- Additional Feature:Space-saving 2U case fit
Sintech PCIe 4.0 x16 to 2 Ports Expansion Card
Designed for high-performance systems, the Sintech PCIe 4.0 x16 to 2 Ports Expansion Card stands out with its ability to split a single PCIe x16 slot into two x8 slots through bifurcation. It enables you to add two PCIe cards simultaneously, perfect for expanding your motherboard’s connectivity. Built with a durable 4-layer PCB and enhanced gold sinking, it guarantees reliable performance and long-term stability. Compatibility is key—your motherboard must support PCIe x16 bifurcation and BIOS configuration for an x8x8 split. With support for various PCIe card types, this expansion card is ideal for professional or gaming setups seeking maximum flexibility.
- Bandwidth:Up to 256 Gbps
- PCIe Version Compatibility:Supports PCIe 4.0/3.0
- Power Cable Length:Not specified
- Bifurcation Support:Supports bifurcation, depends on motherboard
- Material/Build Quality:Gold-plated connectors, durable PCB
- Compatibility/Motherboard Support:Needs motherboard with bifurcation support
- Additional Feature:Increased gold sinking (5U)
- Additional Feature:Supports soft RAID
- Additional Feature:Four-layer PCB construction

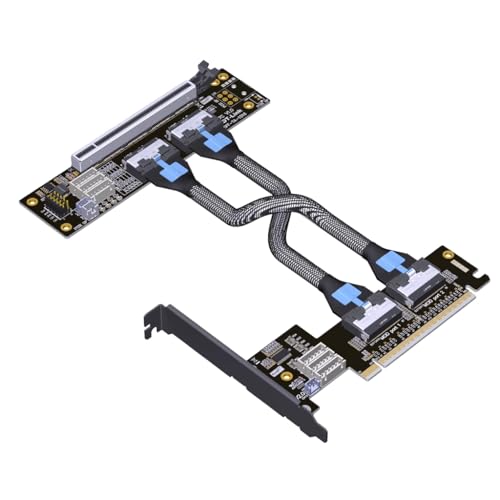

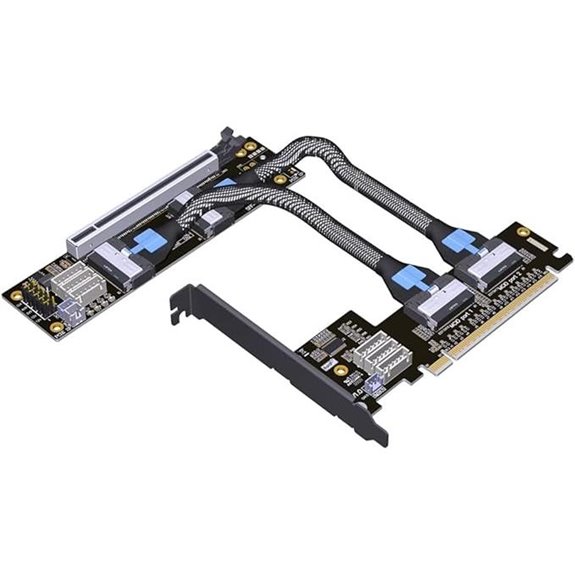

JMT PCIe 4.0 x16 Bifurcation Riser Card
The JMT PCIe 4.0 x16 Bifurcation Riser Card stands out as an ideal choice for enthusiasts seeking reliable high-bandwidth expansion, thanks to its support for PCIe 4.0 and backward compatibility with earlier standards. It offers 256 Gbps bandwidth, allowing flexible PCIe splitting and extension across various motherboard configurations. Its gold-plated contacts improve electrical conductivity and reduce oxidation, ensuring dependable performance. The ultra-thin FFC cable with full coverage shielding minimizes interference, while the included power cable guarantees stable power delivery. Designed for robustness and versatility, this riser is perfect for high-demand applications like multiple GPUs or expansion cards.
- Bandwidth:256 Gbps
- PCIe Version Compatibility:Supports PCIe 4.0/3.0
- Power Cable Length:65cm
- Bifurcation Support:Supports bifurcation, flexible splitting
- Material/Build Quality:Gold-plated contacts, full shielding
- Compatibility/Motherboard Support:Requires motherboard support for bifurcation
- Additional Feature:100cm power cable included
- Additional Feature:Supports flexible bifurcation
- Additional Feature:Designed for graphics extension
GLOTRENDS PA21 Dual M.2 NVMe PCIe 4.0 Adapter
If you’re looking to upgrade your storage setup with high-speed NVMe SSDs, the GLOTRENDS PA21 Dual M.2 NVMe PCIe 4.0 Adapter is a versatile choice—especially for those whose motherboards support PCIe bifurcation. It allows you to install two NVMe SSDs of various sizes and access them simultaneously via a PCIe 4.0 X8 interface. Compatibility spans Windows, Linux, and Mac OS, but your motherboard must support PCIe bifurcation for full functionality. Keep in mind, it doesn’t support bifurcation itself, so BIOS configuration is essential. This adapter is ideal for expanding storage and boosting performance in compatible systems.
- Bandwidth:256 Gbps
- PCIe Version Compatibility:Supports PCIe 4.0/3.0
- Power Cable Length:Not specified
- Bifurcation Support:Does not support bifurcation
- Material/Build Quality:No specific material info, high-quality PCB
- Compatibility/Motherboard Support:Does not support bifurcation
- Additional Feature:Supports RAID via BIOS
- Additional Feature:Compatible with Windows/Linux/Mac
- Additional Feature:Multiple M.2 sizes supported
RIITOP Dual NVMe PCIe Adapter for SSDs
For enthusiasts and professionals seeking to maximize storage capacity in compact builds, the RIITOP Dual NVMe PCIe Adapter stands out by adding two high-speed M.2 NVMe SSD slots through a single PCIe 4.0 x16 slot. It also provides an extra PCIe x16 slot with x8 signal, enabling expansion of other PCIe devices. Compatibility requires a motherboard supporting PCIe 4.0 or 3.0 x16 slots with bifurcation, especially on platforms like X299 and X399. The adapter’s dual SSDs sit on opposite sides, each with LED indicators. Keep in mind, it only supports NVMe SSDs and relies on motherboard bifurcation for full functionality.
- Bandwidth:256 Gbps
- PCIe Version Compatibility:Supports PCIe 4.0/3.0
- Power Cable Length:Not specified
- Bifurcation Support:Supports bifurcation, x16 to x8x4x4
- Material/Build Quality:Metal housing, high-quality PCB
- Compatibility/Motherboard Support:Needs motherboard with bifurcation support
- Additional Feature:Dual NVMe slots, one on each side
- Additional Feature:Supports PCIe 4.0/3.0
- Additional Feature:Compact space-saving design

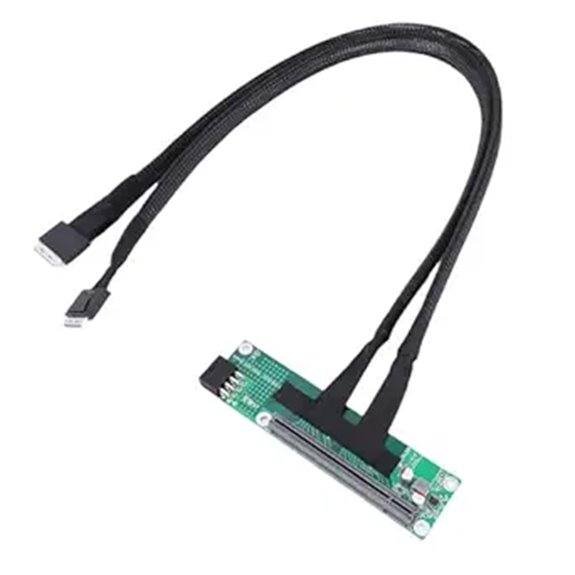

Yunseity PCIe 4.0 X16 Riser Card with Bifurcation
Yunseity’s PCIe 4.0 X16 Riser Card with Bifurcation stands out for its high-speed data transfer capabilities, making it ideal for users who need reliable, high-performance expansion. Supporting PCIe 4.0 standards, it can reach speeds up to 256Gbps and is backward compatible with PCIe 3.0 and 2.0. Its fully shielded, 65cm FFC flat cable offers flexibility and bifurcation, enabling splitting into one or two connections. Designed for plug-and-play use, it requires no additional drivers, simplifying installation. This riser is perfect for professional and high-load scenarios, ensuring seamless upgrades across various motherboard and device configurations.
- Bandwidth:256 Gbps
- PCIe Version Compatibility:Supports PCIe 4.0, backward compatible
- Power Cable Length:65cm
- Bifurcation Support:Supports bifurcation to 1-2, 1-4 configurations
- Material/Build Quality:Gold-plated contacts, shielded cable
- Compatibility/Motherboard Support:Supports bifurcation with compatible BIOS/motherboard
- Additional Feature:Fully shielded FFC cable
- Additional Feature:Supports high data transfer speeds
- Additional Feature:Plug-and-play operation
Factors to Consider When Choosing a PCIE Bifurcation Riser
When selecting a PCIe bifurcation riser, I always start by checking if it’s compatible with my motherboard and supports the right PCIe version. I also consider the available bifurcation options and whether my power supply can handle the additional load. Ultimately, I look at the build quality and materials to guarantee durability and reliable performance.
Compatibility With Motherboard
Making certain your motherboard supports PCIe bifurcation is vital before selecting a riser, as this determines whether the splitter will function correctly. Check the motherboard manual or BIOS for bifurcation support, since not all boards enable this feature by default. You also need to confirm that your motherboard’s PCIe slot matches the riser’s interface, such as PCIe 4.0 x16 or PCIe 3.0 x16. Additionally, verify that the motherboard can handle the specific bifurcation configuration you want, like x8x8 or x4x4x4x4. It’s important to review the PCIe lane distribution and total lanes available to prevent bottlenecks or performance drops. Lastly, make sure your BIOS or firmware is up to date, as older versions might lack the necessary support for bifurcation features.
Supported PCIe Versions
Choosing the right PCIe bifurcation riser depends heavily on the PCIe version it supports, as this directly impacts data transfer speeds and overall performance. PCIe standards vary from 2.0 to 4.0, with 4.0 offering the highest rates up to 256 Gbps. The supported PCIe version determines the maximum bandwidth for connected devices, which is vital for high-speed data transfer tasks. To fully leverage PCIe 4.0’s benefits, both the riser and motherboard need to support PCIe 4.0; otherwise, you’ll default to lower standards. Using a riser with an older PCIe version can limit bandwidth and performance, regardless of its capabilities. Ensuring compatibility between the riser’s PCIe version and your motherboard’s slot is essential for stable operation and ideal performance.
Bifurcation Configuration Options
The bifurcation configuration options of a PCIe riser determine how a single x16 slot can be split into multiple lanes, allowing you to connect multiple devices such as GPUs or NVMe SSDs. These configurations include options like x8/x8 or x4/x4/x4/x4, which are ideal for high-bandwidth devices. The available modes depend on your motherboard’s BIOS and chipset support, so manual setup is often necessary to guarantee proper lane splitting. Compatibility varies, so it’s essential to verify your motherboard manual to confirm supported configurations. Proper bifurcation setup ensures stable data transfer and maximum performance across all connected devices. Selecting the right bifurcation mode is key to maximizing your setup’s efficiency and avoiding potential bottlenecks.
Power Supply Requirements
A reliable power supply is essential when using PCIe bifurcation risers because it needs to deliver enough wattage and stable power to support multiple high-performance devices. Ensuring your PSU has sufficient capacity prevents system instability and hardware issues. A dedicated power cable, usually 50cm or longer, is critical for reliable power transfer to the riser and connected components. Make sure your power supply has the right connectors, like 4-pin or 8-pin PCIe cables, to supply additional power beyond what the motherboard provides. Proper power management helps prevent voltage drops or fluctuations that could harm your hardware or cause crashes. Opt for a high-quality PSU with ample amperage on the 12V rail to improve performance and reduce power-related errors during demanding workloads.
Build Quality and Materials
When selecting a PCIe bifurcation riser, prioritizing build quality and materials is essential for guaranteeing reliable performance. High-quality risers feature durable components like gold-plated contacts, which provide excellent electrical conductivity and resist corrosion. Multi-layer PCBs, especially those with UL certification and heat-resistant materials, minimize thermal deformation and electrical failures. Full coverage shielding in the flat cable reduces electromagnetic interference (EMI) and signal degradation, preserving high data transfer speeds. Ultra-thin cables, around 1.0mm thick, improve flexibility without sacrificing signal integrity. Additionally, robust construction with corrosion-resistant parts ensures long-term stability, even in demanding environments. Choosing a riser built with premium materials guarantees consistent performance, durability, and peace of mind during intensive computing tasks.
Size and Form Factor
Choosing the right size and form factor for your PCIe bifurcation riser is key to guaranteeing it fits seamlessly into your system. You need to match the riser card’s dimensions with your motherboard’s available space and PCIe slot size, whether it’s full-height or low-profile. Consider your case’s internal layout, airflow, and clearance to select a length and cable flexibility that suit your setup. Also, verify that the riser supports the correct number of PCIe lanes—x16, x8, or x4—matching your expansion needs. Finally, guarantee the connector type, like PCIe 4.0, PCIe 3.0, or SFF-8611, aligns with your motherboard’s specifications. Proper sizing and form factor are vital for compatibility, stability, and ideal airflow.
Ease of Installation
Ease of installation is essential when selecting a PCIe bifurcation riser, as it can save you time and prevent frustration during setup. Look for models with clear, thorough instructions or user manuals to make the process straightforward. Opt for plug-and-play designs that don’t require complex BIOS or software tweaks, so you can get your system up and running faster. Secure connectors and high-quality materials ensure easy, tool-free connections, reducing the risk of errors. Check compatibility notes to confirm the riser supports your motherboard’s PCIe version and bifurcation features, avoiding potential compatibility issues. Additionally, integrated power cables and status indicators can be real lifesavers, guiding you through installation and troubleshooting with ease.
Frequently Asked Questions
Can PCIE Bifurcation Risers Support Non-Standard Motherboard Slots?
Yes, PCIe bifurcation risers can support non-standard motherboard slots, but it depends on the specific riser and motherboard compatibility. I recommend checking the riser’s specifications and your motherboard’s slot type to confirm they match and support bifurcation. Sometimes, non-standard slots might require adapters or custom configurations. Always verify compatibility before purchasing to avoid any issues with your setup.
Are There Compatibility Issues With Certain GPU Models?
Yes, I’ve noticed that some GPU models can have compatibility issues with certain PCIe bifurcation risers. It’s important to check your GPU’s specifications and guarantee the riser supports its power and size requirements. I always recommend verifying compatibility with the manufacturer or user reviews to avoid issues like improper fitting or power delivery problems, especially with high-performance or newer GPU models.
How Do Bifurcation Risers Impact System Stability?
Think of bifurcation risers as the tightrope walkers of your system—precise and delicate. They can impact stability if not matched properly with your motherboard and GPU, causing potential data hiccups or crashes. I’ve seen setups wobble when these connections aren’t flawless. To keep your system steady as a rock, make certain compatibility and quality. Proper installation makes all the difference in maintaining a smooth, reliable performance.
What Is the Maximum Bandwidth Supported by These Risers?
The maximum bandwidth supported by these PCIe bifurcation risers depends on the PCIe version they’re designed for. Typically, PCIe 3.0 risers support up to 32 GB/s, while PCIe 4.0 risers can handle up to 64 GB/s. I always verify the specific riser’s specifications to guarantee it matches my system’s needs, especially for high-performance tasks like gaming or data processing.
Do Bifurcation Risers Require Additional Power Connections?
Yes, bifurcation risers often require additional power connections. I’ve found that many models need extra power to support multiple PCIe slots or high-performance GPUs. These connections help guarantee stable operation and prevent power issues. When choosing a riser, I always check if it needs supplementary power cables, like 6-pin or 8-pin connectors, to avoid any performance hiccups or hardware damage during your setup.
Conclusion
So, there you have it—your ticket to turning a humble PCIe slot into a full-blown multi-lane wonderland. Who knew bifurcation could be so glamorous? Just remember, choosing the right riser isn’t rocket science, but it sure feels like it when you’re juggling bandwidth and compatibility. So go ahead, upgrade your setup, and pretend you’re a tech genius—after all, who needs a spaceship when you’ve got a PCIe riser?
